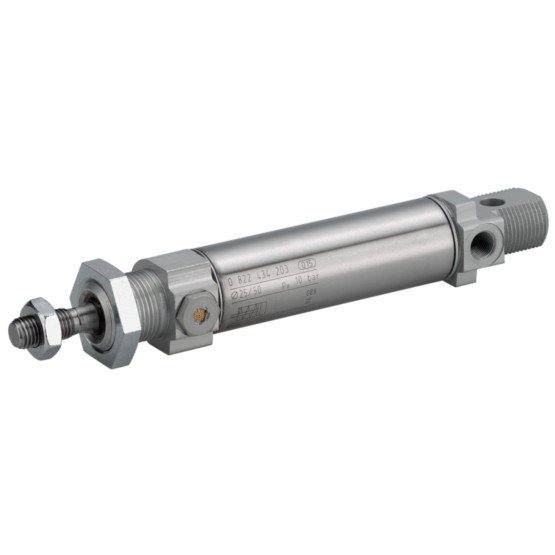

Aventics MNI-SA-10-0025-U-01-01-1-00-000-00 Pneumatic Linear Actuator

Piston rod cylinders, Round cylinder, Standard cylinders, ISO cylinder, Mini cylinder, ISO 6432. View other configurations.

$63.71
Part Numbers
  • MNI-SA-10-0025-U-01-01-1-00-000-00
  • 0822430202
Highlights...

Features

  • Bore Size: 10 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning

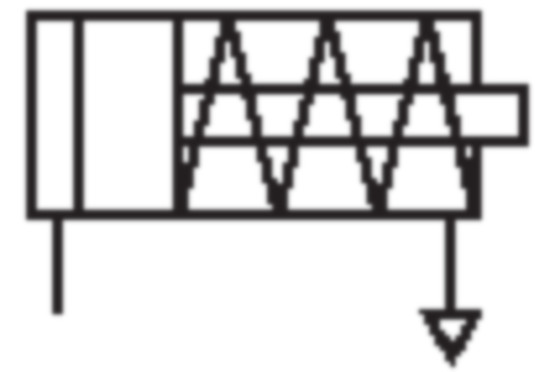

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 8.4 N
  • Force min.: 5.2 N
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 41 N
  • Piston rod modification: single
  • Piston rod thread: M4
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 4.53x0.79x0.79 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822430202
