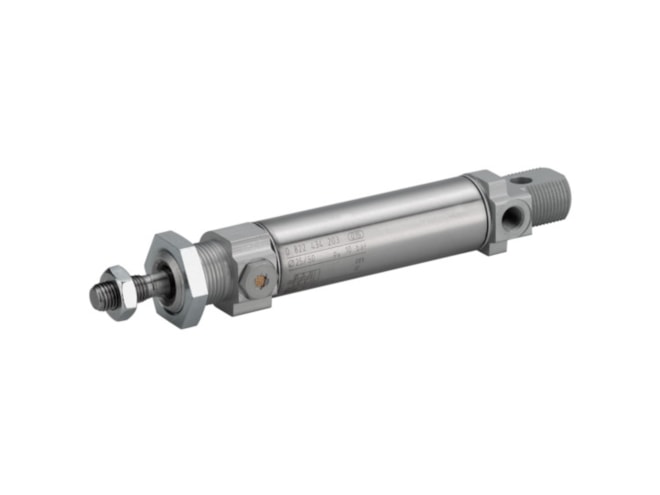

Aventics MNI-SA-16-0050-U-01-01-1-00-000-00 Pneumatic Linear Actuator

ISO cylinder, Round cylinder, Mini cylinder, ISO 6432, Piston rod cylinders, Standard cylinders. View other configurations.

$77.60
Part Numbers
  • MNI-SA-16-0050-U-01-01-1-00-000-00
  • 0822432203
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 24.4 N
  • Force min.: 14.2 N
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 102.2 N
  • Piston rod modification: single
  • Piston rod thread: M6
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 6.57x1.26x0.87 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822432203
