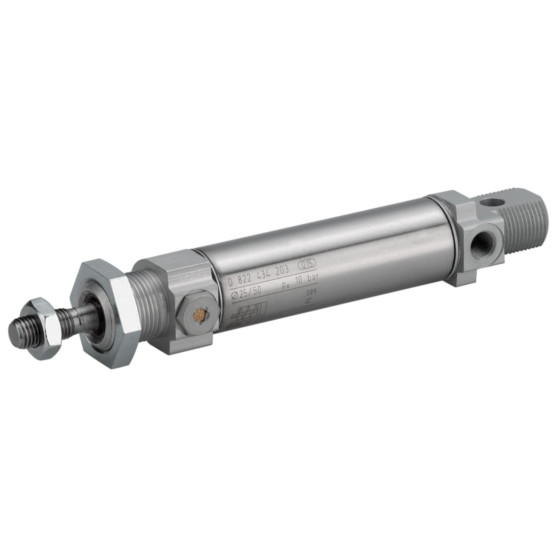

Aventics MNI-SA-20-0010-U-01-01-1-00-000-00 Pneumatic Linear Actuator

ISO 6432, Standard cylinders, Mini cylinder, ISO cylinder, Piston rod cylinders, Round cylinder. View other configurations.

$84.00
Part Numbers
  • MNI-SA-20-0010-U-01-01-1-00-000-00
  • 0822433201
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning

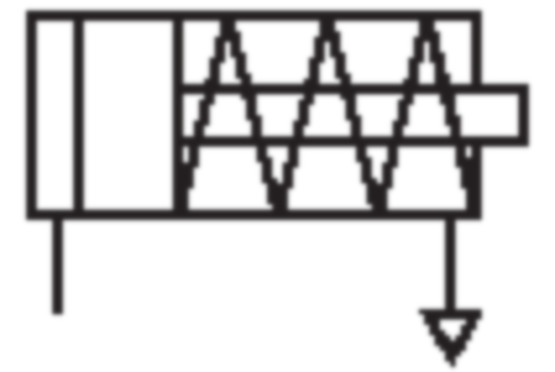

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 23.4 N
  • Force min.: 12.8 N
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 174.6 N
  • Piston rod modification: single
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 5.51x1.18x1.18 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822433201
