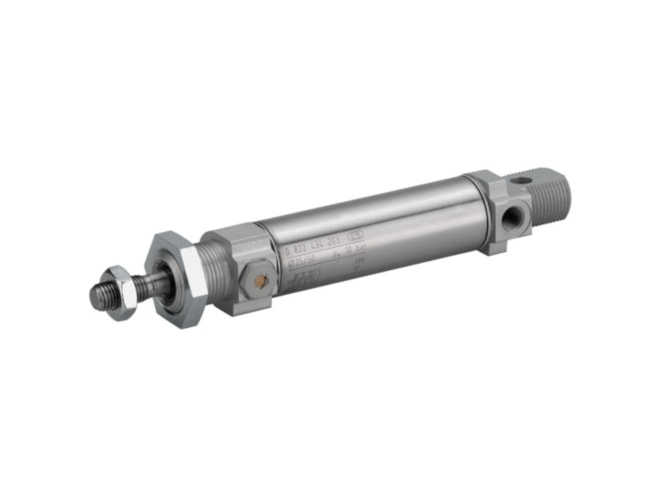

Aventics MNI-SA-25-0010-U-01-01-1-00-000-00 Pneumatic Linear Actuator

Round cylinder, Piston rod cylinders, ISO cylinder, Mini cylinder, ISO 6432, Standard cylinders. View other configurations.

$92.16
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • MNI-SA-25-0010-U-01-01-1-00-000-00
  • 0822434201
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 29.4 N
  • Force min.: 19.2 N
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 279.6 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 5.91x1.38x1.38 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822434201
