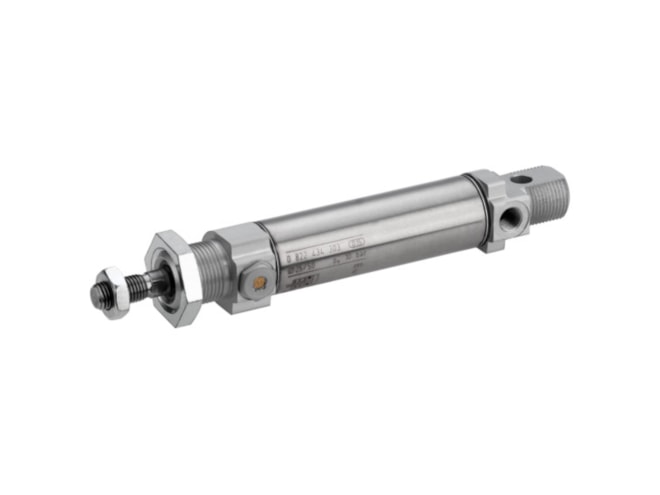

Aventics MNI-SA-10-0025-U-31-01-1-00-000-00 Pneumatic Linear Actuator

ISO 6432, Round cylinder, Mini cylinder, Standard cylinders, Piston rod cylinders, ISO cylinder. View other configurations.

Call for pricing
Part Numbers
  • MNI-SA-10-0025-U-31-01-1-00-000-00
  • 0822430302
Highlights...

Features

  • Bore Size: 10 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 8.4 N
  • Force min.: 5.2 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 41 N
  • Piston rod modification: single
  • Piston rod thread: M4
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 4.72x0.79x0.79 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822430302
