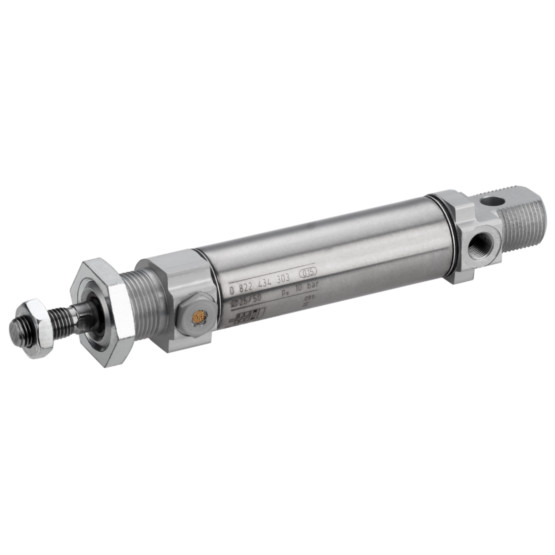

Aventics MNI-SA-20-0040-U-31-01-1-00-000-00 Pneumatic Linear Actuator

Mini cylinder, Piston rod cylinders, Round cylinder, Standard cylinders, ISO 6432, ISO cylinder. View other configurations.

Call for pricing
Part Numbers
  • MNI-SA-20-0040-U-31-01-1-00-000-00
  • R480609780
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning

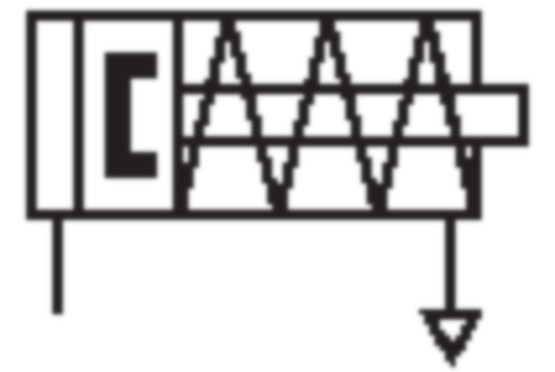

  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Force max.: 23.4 N
  • Force min.: 12.8 N
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 174.6 N
  • Piston rod modification: single
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 40 mm
  • Dimension: 7.09x1.38x1.38 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI R480609780
