Aventics MNI-DA-16-0080-U-01-01-1-00-000-00 Pneumatic Linear Actuator

Piston rod cylinders, Standard cylinders, ISO cylinder, Round cylinder, ISO 6432, Mini cylinder. View other configurations.

$86.01
Part Numbers
  • MNI-DA-16-0080-U-01-01-1-00-000-00
  • 0822032204
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning

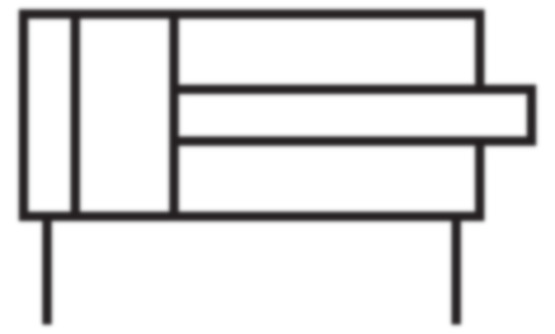

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 127 N
  • Piston force retracting: 109 N
  • Piston rod modification: single
  • Piston rod thread: M6
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 80 mm
  • Dimension: 7.68x0.98x0.79 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822032204
