Aventics MNI-DA-25-0160-U-01-01-1-00-000-00 Pneumatic Linear Actuator

ISO 6432, Standard cylinders, Mini cylinder, ISO cylinder, Piston rod cylinders, Round cylinder. View other configurations.

$105.13
Part Numbers
  • MNI-DA-25-0160-U-01-01-1-00-000-00
  • 0822034207
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning

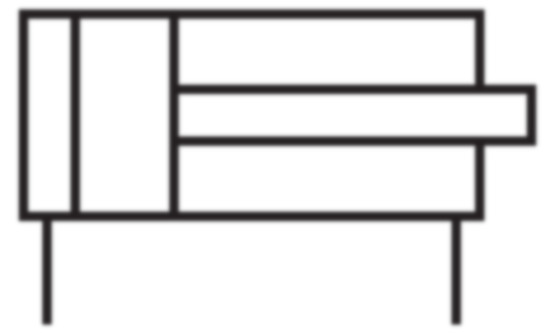

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 309 N
  • Piston force retracting: 260 N
  • Piston rod modification: single
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 160 mm
  • Dimension: 12.80x1.38x1.57 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822034207
