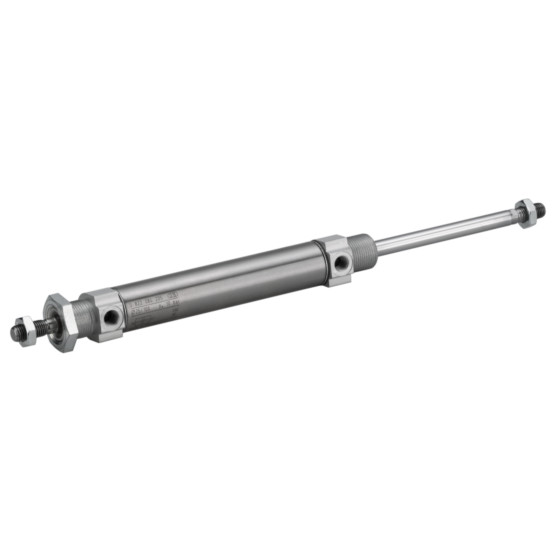

Aventics MNI-DA-12-0025-U-01-13-1-00-000-00 Pneumatic Linear Actuator

ISO cylinder, Piston rod cylinders, Round cylinder, Mini cylinder, Standard cylinders, ISO 6432. View other configurations.

$105.65
Part Numbers
  • MNI-DA-12-0025-U-01-13-1-00-000-00
  • 0822081202
Highlights...

Features

  • Bore Size: 12 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 53 N
  • Piston force retracting: 53 N
  • Piston rod modification: through
  • Piston rod thread: M6
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 7.09x0.98x0.98 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822081202
