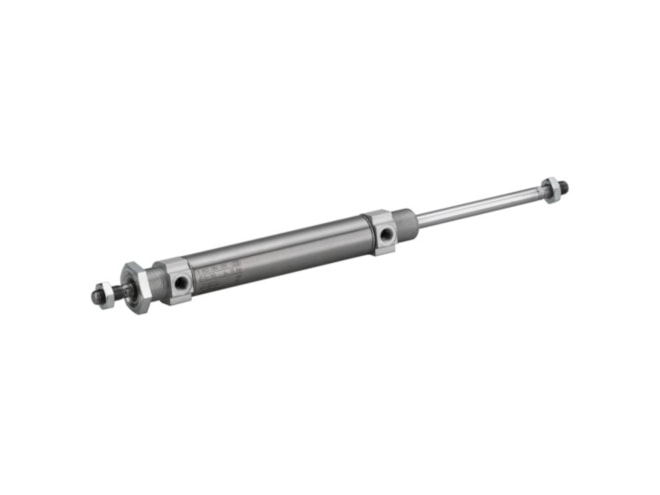

Aventics MNI-DA-20-0080-U-01-13-1-00-000-00 Pneumatic Linear Actuator

ISO cylinder, ISO 6432, Mini cylinder, Standard cylinders, Piston rod cylinders, Round cylinder. View other configurations.

Call for pricing
Part Numbers
  • MNI-DA-20-0080-U-01-13-1-00-000-00
  • 0822083204
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 166 N
  • Piston force retracting: 166 N

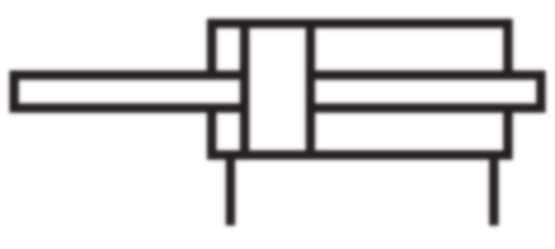

  • Piston rod modification: through
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 80 mm
  • Dimension: 13.78x1.57x1.57 (inches)
