Aventics 522-DA-020-0100-MAG Pneumatic Linear Actuator

Round cylinder, Standard cylinders, ISO 6432, ISO cylinder, Mini cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • 522-DA-020-0100-MAG
  • 5226645000
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Features: With polymer bushing in rear eye

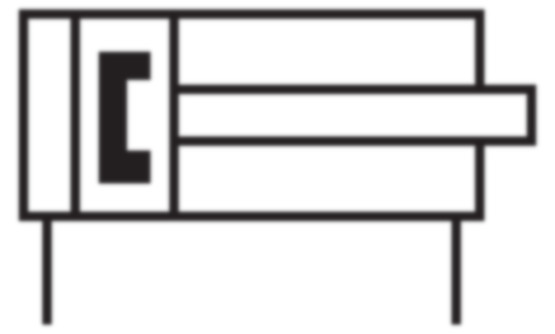

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 198 N
  • Piston force retracting: 166 N
  • Piston rod modification: single
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 100 mm
  • Dimension: 9.21x1.77x1.57 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 5226645000
