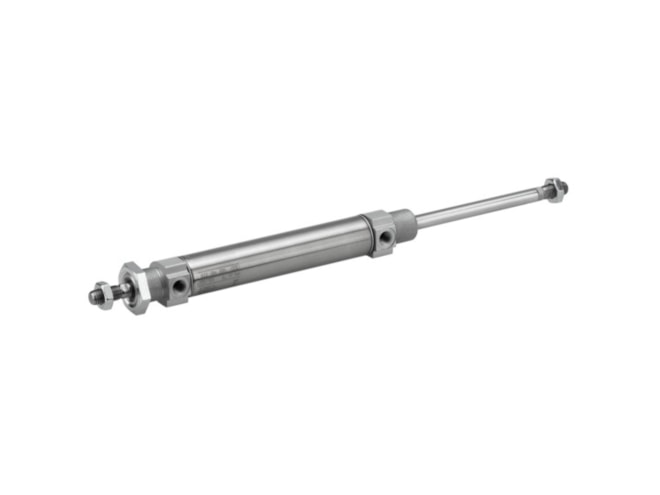

Aventics MNI-DA-16-0200-U-31-13-1-00-000-00 Pneumatic Linear Actuator

Piston rod cylinders, Standard cylinders, Round cylinder, Mini cylinder, ISO 6432, ISO cylinder. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • MNI-DA-16-0200-U-31-13-1-00-000-00
  • 0822382008
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 109 N
  • Piston force retracting: 109 N
  • Piston rod modification: through
  • Piston rod thread: M6
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 200 mm
  • Dimension: 21.65x1.97x1.97 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822382008
