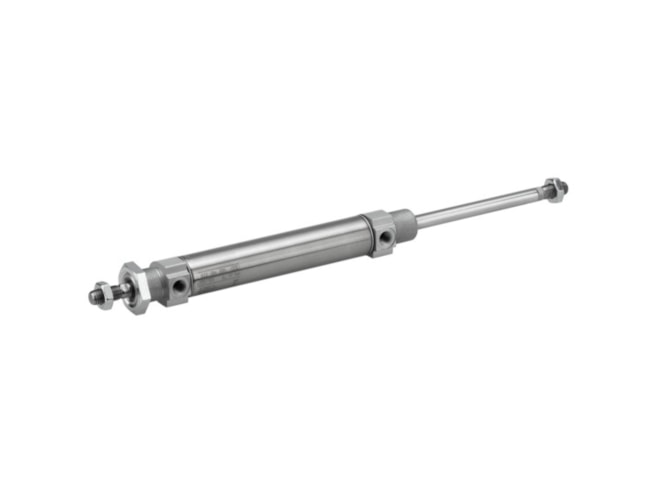

Aventics MNI-DA-20-0100-U-31-13-1-00-000-00 Pneumatic Linear Actuator

Round cylinder, ISO 6432, Piston rod cylinders, Standard cylinders, ISO cylinder, Mini cylinder. View other configurations.

$137.34
Part Numbers
  • MNI-DA-20-0100-U-31-13-1-00-000-00
  • 0822383005
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 166 N
  • Piston force retracting: 166 N
  • Piston rod modification: through
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 100 mm
  • Dimension: 16.14x1.38x1.38 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 0822383005
