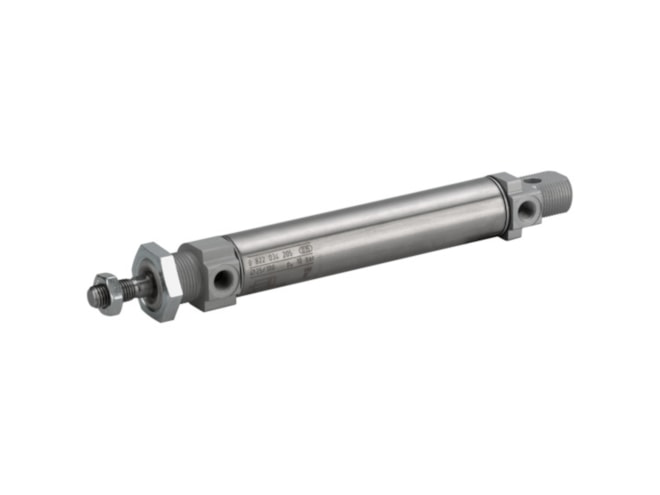

Aventics 522-DA-020-0010-CUS-MAG Pneumatic Linear Actuator

ISO cylinder, ISO 6432, Round cylinder, Standard cylinders, Piston rod cylinders, Mini cylinder. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • 522-DA-020-0010-CUS-MAG
  • 5226744100
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Features: With polymer bushing in rear eye
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 198 N
  • Piston force retracting: 166 N
  • Piston rod modification: single
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 5.75x1.06x1.18 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI 5226744100
