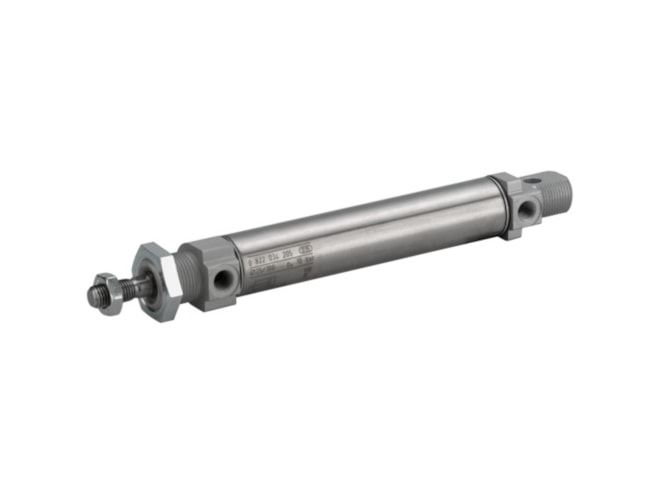

Aventics 522-DA-020-0100-CUS-MAG Pneumatic Linear Actuator

ISO 6432, ISO cylinder, Mini cylinder, Piston rod cylinders, Round cylinder, Standard cylinders. View other configurations.

Aventics 522-DA-020-0100-CUS-MAG Pneumatic Linear Actuator — Aventics-522-DA-020-0100-CUS-MAG

Call for pricing

Part Numbers

522-DA-020-0100-CUS-MAG
5226745000

Highlights...

522-DA-020-0100-CUS-MAG
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 20 mm
Compressed air connection: G 1/8
Cushioning: Pneumatic adjustable cushioning
Cylinder Features: With polymer bushing in rear eye
Cylinder Function: Double-acting
Environmental requirements: Industry standard, ATEX optional
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 198 N
Piston force retracting: 166 N
Piston rod modification: single
Piston rod thread: M8
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 100 mm
Dimension: 9.21x1.06x2.48 (inches)

View other configurations.

AVENTICS Mini cylinder, Series MNI 5226745000
