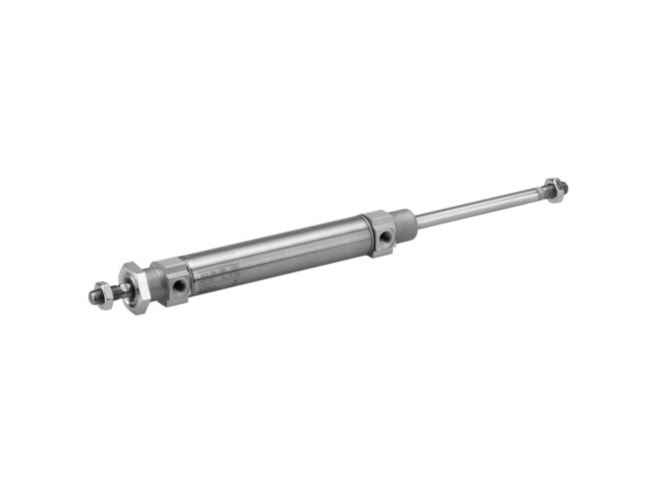

Aventics MNI-DA-16-0100-D-31-13-1-00-000-00 Pneumatic Linear Actuator

ISO cylinder, Piston rod cylinders, ISO 6432, Mini cylinder, Round cylinder, Standard cylinders. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • MNI-DA-16-0100-D-31-13-1-00-000-00
  • R480680383
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 109 N
  • Piston force retracting: 109 N
  • Piston rod modification: through
  • Piston rod thread: M6
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 100 mm
  • Dimension: 12.99x1.18x1.18 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI R480680383
