Aventics MNI-DA-20-0050-D-31-13-1-00-000-00 Pneumatic Linear Actuator

Standard cylinders, Mini cylinder, Round cylinder, ISO 6432, ISO cylinder, Piston rod cylinders. View other configurations.

Call for pricing
Part Numbers
  • MNI-DA-20-0050-D-31-13-1-00-000-00
  • R480680392
Highlights...

Features

  • Bore Size: 20 mm
  • Compressed air connection: G 1/8
  • Cushioning: Pneumatic adjustable cushioning

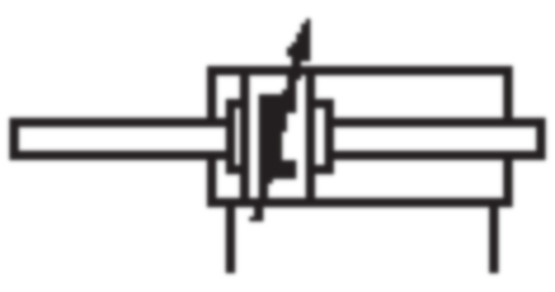

  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 166 N
  • Piston force retracting: 166 N
  • Piston rod modification: through
  • Piston rod thread: M8
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 9.84x1.18x1.18 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI R480680392
