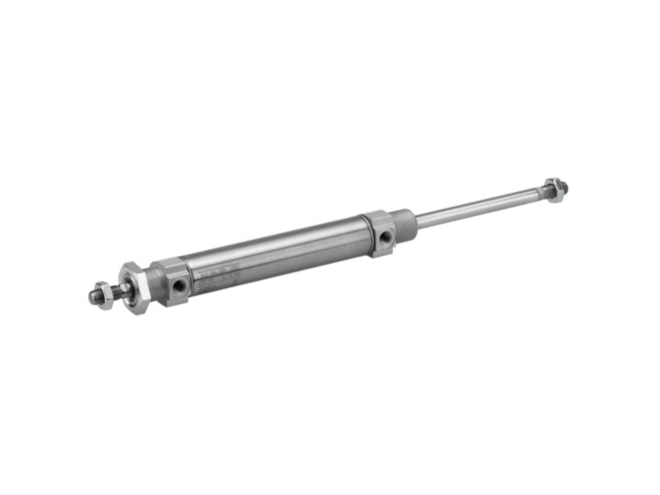

Aventics MNI-DA-25-0160-D-31-13-1-00-000-00 Pneumatic Linear Actuator

ISO 6432, Round cylinder, Mini cylinder, Piston rod cylinders, Standard cylinders, ISO cylinder. View other configurations.

Call for pricing
Part Numbers
  • MNI-DA-25-0160-D-31-13-1-00-000-00
  • R480680408
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Pneumatic adjustable cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 260 N
  • Piston force retracting: 260 N
  • Piston rod modification: through
  • Piston rod thread: M10x1,25
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 160 mm
  • Dimension: 19.29x1.38x1.38 (inches)
View other configurations.
AVENTICS Mini cylinder, Series MNI R480680408
