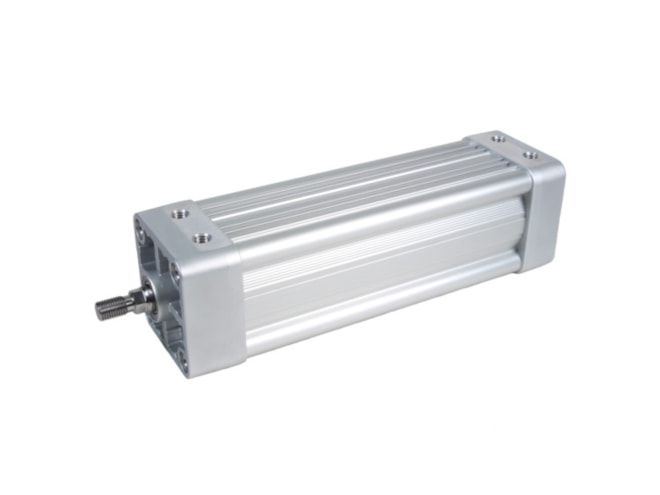

Aventics 3.25X8 P-CMS4-TMC3/4-16M-BAS Pneumatic Linear Actuator

View other configurations.

$328.16
Part Numbers
  • 3.25X8 P-CMS4-TMC3/4-16M-BAS
  • R480698806
Highlights...

Features

  • Bore Size: 82.55 mm
  • Compressed air connection: 1/2 NPTF
  • Cushioning: Pneumatically
  • Cylinder Function: Double-acting
  • Industry: Industrial
  • Magnetic piston: with magnetic piston
  • Max Working Pressure: 10 bar
  • Piston force extending: 3322.95 N
  • Piston force retracting: 3007.12 N
  • Piston rod thread: 3/4-16 UNF
  • Piston rod thread type: External thread
  • Stroke Length: 203.2 mm
View other configurations.
AVENTICS Profile cylinder NFPA, TaskMaster®, Series TM5 R480698806
