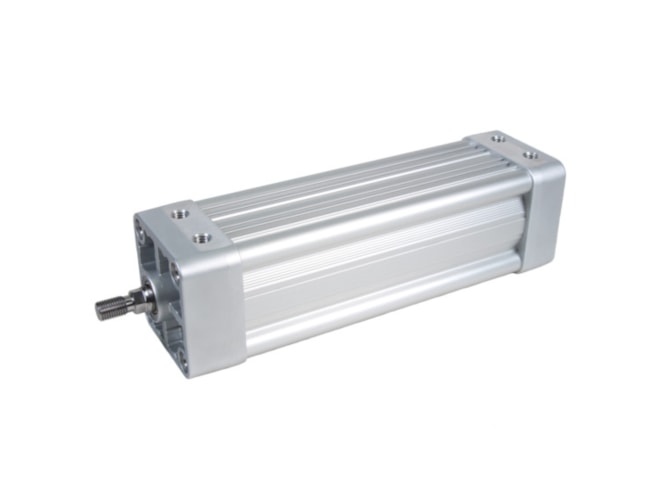

Aventics 4X2 P-CMS4-TMC3/4-16M-BAS Pneumatic Linear Actuator

View other configurations.

$327.22
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • 4X2 P-CMS4-TMC3/4-16M-BAS
  • R480698814
Highlights...

Features

  • Bore Size: 101.6 mm
  • Compressed air connection: 1/2 NPTF
  • Cushioning: Pneumatically
  • Cylinder Function: Double-acting
  • Industry: Industrial
  • Magnetic piston: with magnetic piston
  • Max Working Pressure: 10 bar
  • Piston force extending: 5031.14 N
  • Piston force retracting: 4715.3 N
  • Piston rod thread: 3/4-16 UNF
  • Piston rod thread type: External thread
  • Stroke Length: 50.8 mm
View other configurations.
AVENTICS Profile cylinder NFPA, TaskMaster®, Series TM5 R480698814
