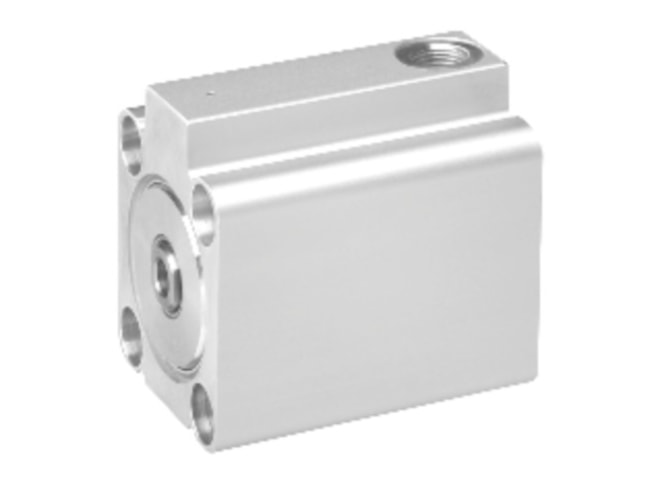

Aventics KHZ-SA-012-0004-O Pneumatic Linear Actuator

Short-stroke cylinder, Piston rod cylinders. View other configurations.

$45.71
Part Numbers
  • KHZ-SA-012-0004-O
  • 0822406020
Highlights...

Features

  • Bore Size: 12 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 71 N
  • Piston force retracting: 6.8 N
  • Piston rod modification: single
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 4 mm
  • Dimension: 0.98x0.79x0.63 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series KHZ 0822406020
