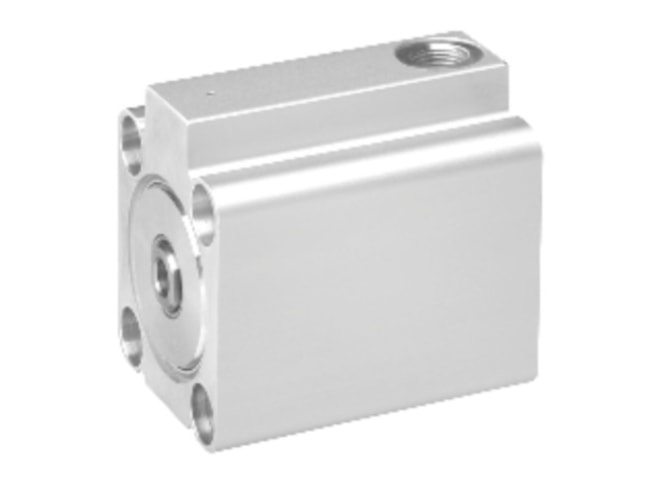

Aventics KHZ-SA-016-0025-O Pneumatic Linear Actuator

Short-stroke cylinder, Piston rod cylinders. View other configurations.

$61.71
Part Numbers
  • KHZ-SA-016-0025-O
  • 0822406312
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, retracted without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 127 N
  • Piston force retracting: 8 N
  • Piston rod modification: single
  • Piston rod thread: M5
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 2.36x1.38x1.18 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series KHZ 0822406312
