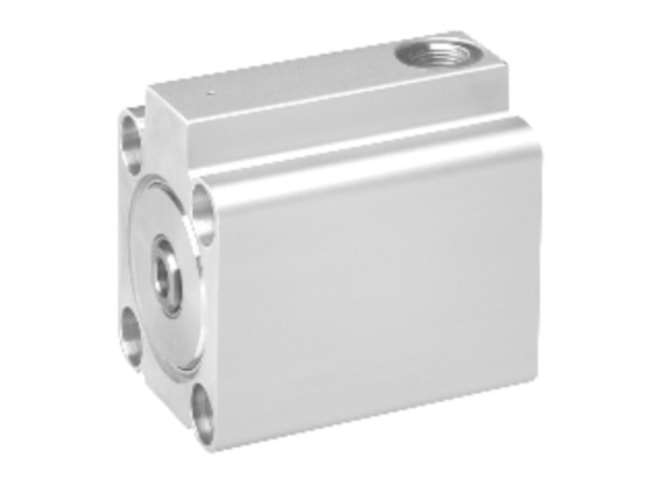

Aventics KHZ-SA-050-0025-M Pneumatic Linear Actuator

Short-stroke cylinder, Piston rod cylinders. View other configurations.

Aventics KHZ-SA-050-0025-M Pneumatic Linear Actuator — Aventics-KHZ-SA-050-0025-M

Call for pricing

Part Numbers

KHZ-SA-050-0025-M
0822406462

Highlights...

KHZ-SA-050-0025-M
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 50 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Single-acting, retracted without pressure
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1237 N
Piston force retracting: 39 N
Piston rod modification: single
Piston rod thread: M8
Piston rod thread type: Internal thread
Scraper Type: Standard Industry Scraper
Stroke Length: 25 mm
Dimension: 2.95x2.95x2.56 (inches)

View other configurations.

AVENTICS Short-stroke cylinder, Series KHZ 0822406462
