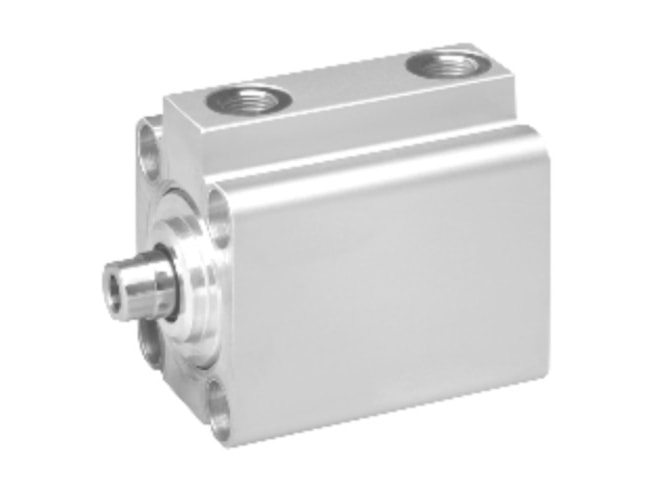

Aventics KHZ-DA-100-0025-O Pneumatic Linear Actuator

Piston rod cylinders, Short-stroke cylinder. View other configurations.

$295.31
Part Numbers
  • KHZ-DA-100-0025-O
  • R402005833
Highlights...

Features

  • Bore Size: 100 mm
  • Compressed air connection: G 1/4
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 4948 N
  • Piston force retracting: 4639 N
  • Piston rod modification: single
  • Piston rod thread: M12
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
  • Dimension: 5.51x5.51x3.15 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series KHZ R402005833
