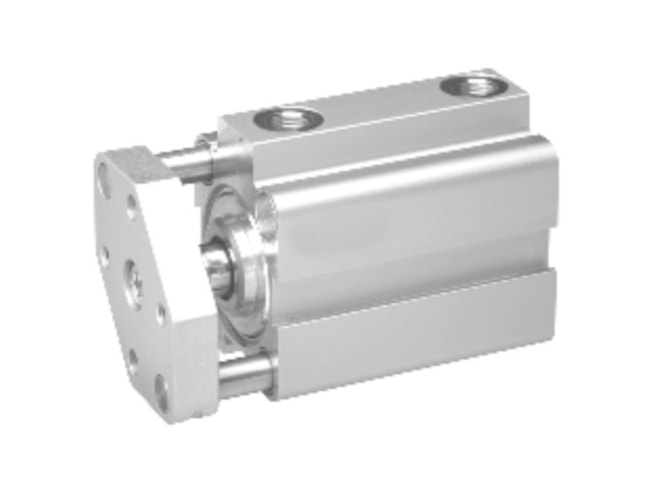

Aventics KHZ-DA-025-0030-M-NR Pneumatic Linear Actuator

Short-stroke cylinder, Piston rod cylinders. View other configurations.

$147.86
Part Numbers
  • KHZ-DA-025-0030-M-NR
  • 0822010835
Highlights...

Features

  • Bore Size: 25 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 309 N
  • Piston force retracting: 260 N
  • Piston rod modification: non-rotating
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 30 mm
  • Dimension: 3.35x1.97x1.97 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series KHZ 0822010835
