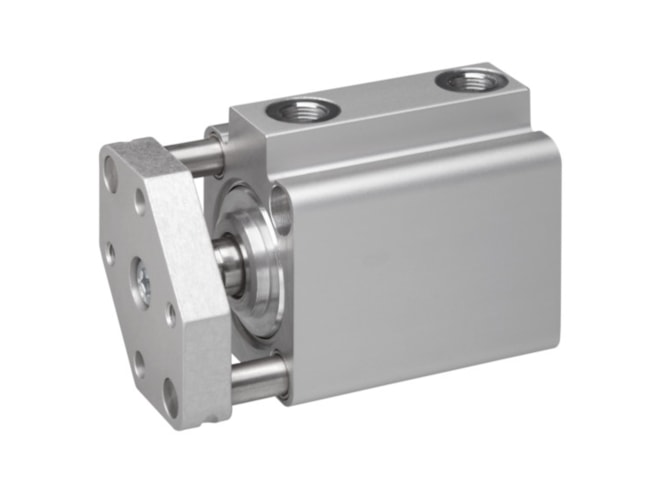

Aventics KHZ-DA-063-0050-O-NR Pneumatic Linear Actuator

Piston rod cylinders, Short-stroke cylinder. View other configurations.

Call for pricing
Part Numbers
  • KHZ-DA-063-0050-O-NR
  • 0822010777
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston without magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1964 N
  • Piston force retracting: 1837 N
  • Piston rod modification: non-rotating
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 4.72x3.74x3.35 (inches)
View other configurations.
AVENTICS Short-stroke cylinder, Series KHZ 0822010777
