Aventics KPZ-SA-063-0005-002122411000000-B Pneumatic Linear Actuator

Standard cylinders, multi-position cylinder, Piston rod cylinders, Compact cylinder, According to NFE 49-004. View other configurations.

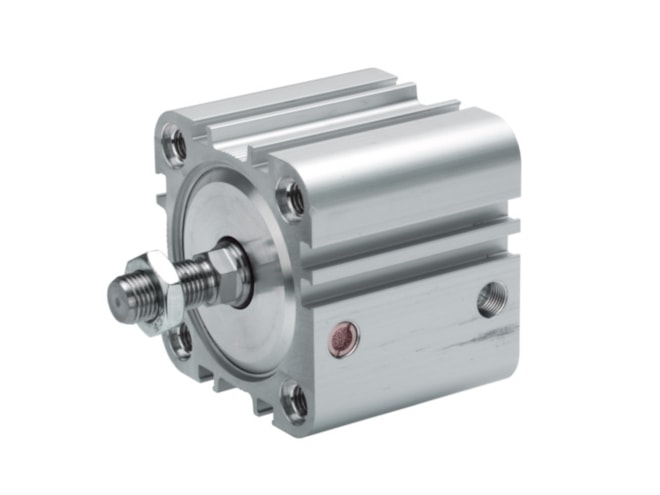

Aventics KPZ-SA-063-0005-002122411000000-B Pneumatic Linear Actuator — Aventics-KPZ-SA-063-0005-002122411000000-B

Call for pricing

Part Numbers

KPZ-SA-063-0005-002122411000000-B
0822496200

Highlights...

KPZ-SA-063-0005-002122411000000-B
By Aventics
FREE Shipping on orders of $1,000 or more
Usually ships in 7-10 business days

Features

Bore Size: 63 mm
Compressed air connection: G 1/8
Cushioning: Elastic cushioning
Cylinder Function: Single-acting, retracted without pressure
Environmental requirements: Industry standard
Industry: Industrial
Magnetic piston: Piston with magnet
Max Working Pressure: 10 bar
Piston force extending: 1882 N
Piston force retracting: 82 N
Piston rod modification: single
Piston rod thread: M12x1,25
Piston rod thread type: External thread
Scraper Type: Standard Industry Scraper
Stroke Length: 5 mm

View other configurations.

AVENTICS Compact cylinder, Series KPZ 0822496200
