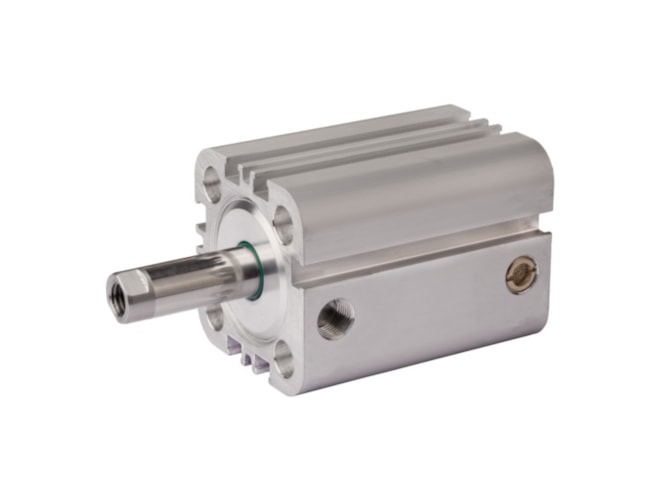

Aventics KPZ-SA-016-0025-0031224110000200000000-B Pneumatic Linear Actuator

Compact cylinder, multi-position cylinder, According to NFE 49-004, Piston rod cylinders, Standard cylinders. View other configurations.

$109.42
Part Numbers
  • KPZ-SA-016-0025-0031224110000200000000-B
  • 0822490104
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Single-acting, extended without pressure
  • Environmental requirements: Industry standard
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 12 N
  • Piston force retracting: 127 N
  • Piston rod modification: single
  • Piston rod thread: M4
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 25 mm
View other configurations.
AVENTICS Compact cylinder, Series KPZ 0822490104
