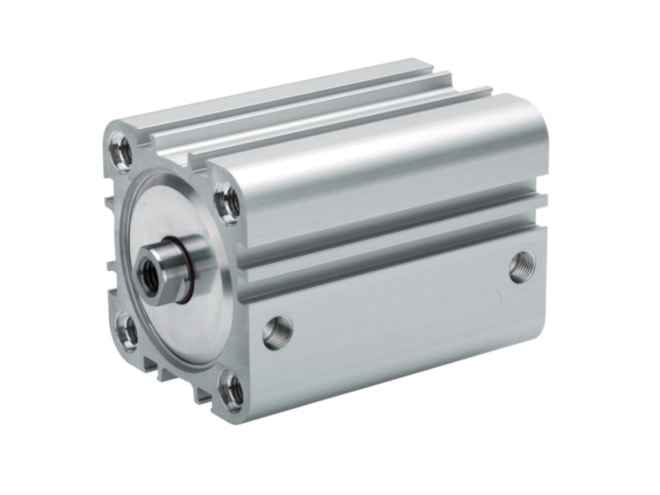

Aventics KPZ-DA-063-0030-004122411000020-B Pneumatic Linear Actuator

Compact cylinder, multi-position cylinder, According to NFE 49-004, Piston rod cylinders, Standard cylinders. View other configurations.

Call for pricing
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • KPZ-DA-063-0030-004122411000020-B
  • 0822396005
Highlights...

Features

  • Bore Size: 63 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 1964 N
  • Piston force retracting: 1827 N
  • Piston rod modification: single
  • Piston rod thread: M10
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 30 mm
  • Dimension: 3.94x3.35x3.35 (inches)
View other configurations.
AVENTICS Compact cylinder, Series KPZ 0822396005
