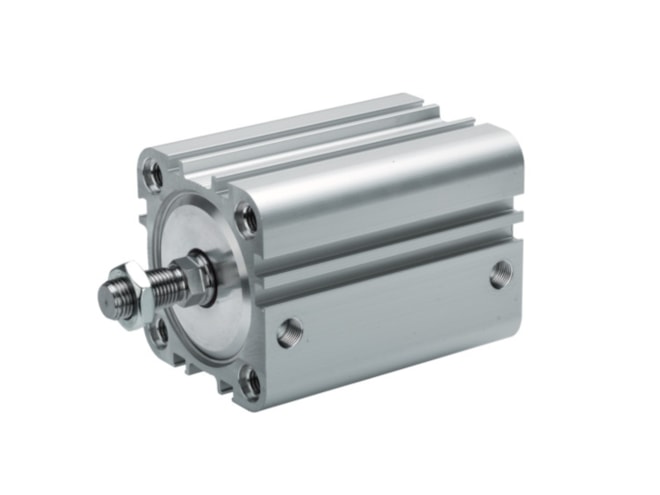

Aventics KPZ-DA-080-0050-004122411000000-B Pneumatic Linear Actuator

According to NFE 49-004, multi-position cylinder, Piston rod cylinders, Standard cylinders, Compact cylinder. View other configurations.

$334.76
Part Numbers
  • KPZ-DA-080-0050-004122411000000-B
  • 0822397207
Highlights...

Features

  • Bore Size: 80 mm
  • Compressed air connection: G 1/8
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 3167 N
  • Piston force retracting: 2969 N
  • Piston rod modification: single
  • Piston rod thread: M16x1,5
  • Piston rod thread type: External thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 50 mm
  • Dimension: 6.30x4.33x4.33 (inches)
View other configurations.
AVENTICS Compact cylinder, Series KPZ 0822397207
