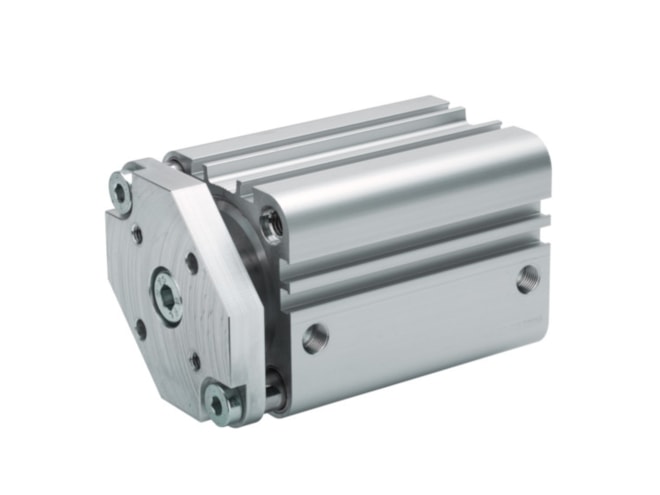

Aventics KPZ-DA-016-0010-007122411000020-B Pneumatic Linear Actuator

Standard cylinders, According to NFE 49-004, multi-position cylinder, Compact cylinder, Piston rod cylinders. View other configurations.

$146.44
Part Numbers
  • KPZ-DA-016-0010-007122411000020-B
  • 0822390601
Highlights...

Features

  • Bore Size: 16 mm
  • Compressed air connection: M5
  • Cushioning: Elastic cushioning
  • Cylinder Function: Double-acting
  • Environmental requirements: Industry standard, ATEX optional
  • Industry: Industrial
  • Magnetic piston: Piston with magnet
  • Max Working Pressure: 10 bar
  • Piston force extending: 127 N
  • Piston force retracting: 95 N
  • Piston rod modification: non-rotating, with front plate
  • Piston rod thread type: Internal thread
  • Scraper Type: Standard Industry Scraper
  • Stroke Length: 10 mm
  • Dimension: 2.36x1.18x1.18 (inches)
View other configurations.
AVENTICS Compact cylinder, Series KPZ 0822390601
