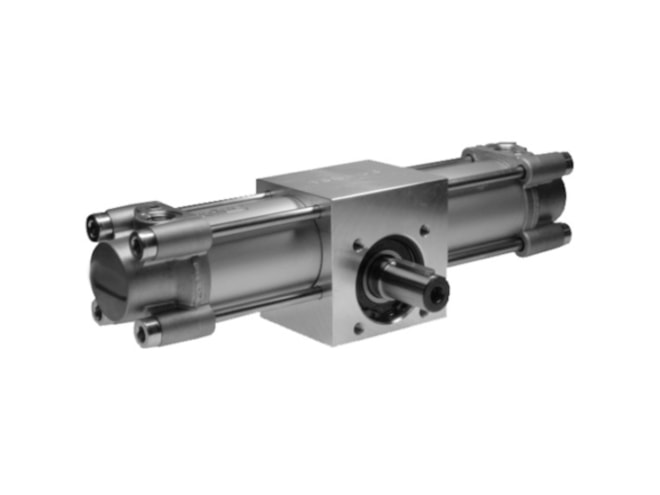

Aventics TRR-DA-080-0180-ADJ Pneumatic Linear Actuator

Adjustable pneumatic cushioning, Adjustable angle of rotation, Rotary actuator. View other configurations.

$2,036.55
Effective March 12th, Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Part Numbers
  • TRR-DA-080-0180-ADJ
  • 0822934228
Highlights...

Features

  • Adjustable angle of rotation max.: 180 °
  • Adjustable angle of rotation min.: 0 °
  • Bore Size: 80 mm
  • Compressed air connection: G 3/8
  • Cushioning: Pneumatically
  • Industry: Industrial
  • Magnetic piston: with magnetic piston
  • Rotation angle adjustable: -7° / +7°
  • Rotation direction: counterclockwise
  • Dimension: 18.31x7.09x5.51 (inches)
View other configurations.
AVENTICS Rack-and-pinion gears, Series TRR 0822934228
