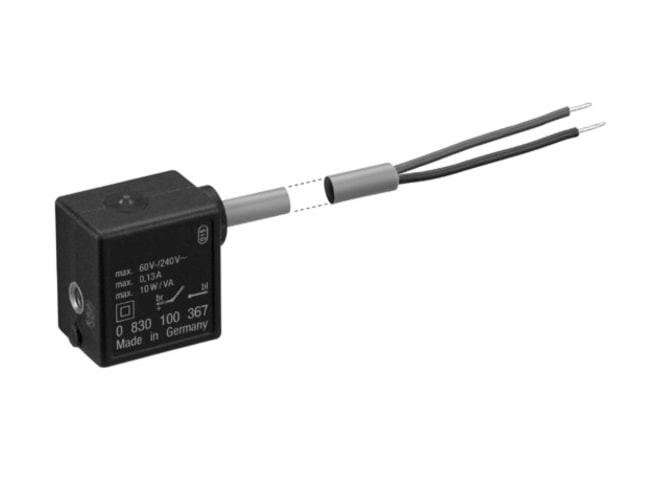

Aventics SN2-R3-K03V-042 Proximity Sensor

Heat resistant, Proximity sensor. View other configurations.

$52.07
Part Numbers
  • SN2-R3-K03V-042
  • 0830100371
Highlights...

Features

  • Cable Length: 3 m
  • Cylinder series: TRB, PRA, ITS, MNI, CSL-RD, ICM, RPC, TRR, FLT, CVI
  • Electrical Connection Type 2: without wire end ferrule, tin-plated
  • Industry: Industrial
  • LED color: Yellow
  • Number of Poles 2: 2-pin
  • Output Signal: Reed
  • Protection: Protected against polarity reversal
  • Protection class: IP67
  • Supply voltage AC max.: 42 V AC
  • Supply voltage DC max.: 42 V DC
  • Dimension: 3.94x3.94x0.79 (inches)
View other configurations.
AVENTICS Sensor, Series SN2 0830100371
