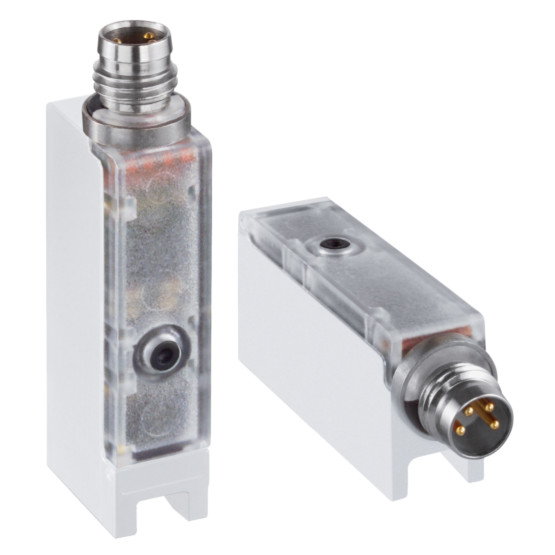

Aventics PE6-P2-S HYST. EINST Pressure Switch

Pressure sensor. View other configurations.

$135.22
Part Numbers
  • PE6-P2-S HYST. EINST
  • R412007887
Highlights...

Features

  • Compressed air connection: Ø 1,2x1
  • Compressed air connection type: Flange with O-ring
  • Industry: Industrial
  • Mounting position: S (vertical)
  • Output Signal: 2 x PNP
  • Overpressure Protection: 15 bar
  • Protection class: IP40
  • Switching pressure max.: 10 bar
  • Switching pressure min.: 0 bar
  • Dimension: 3.94x5.12x1.57 (inches)
View other configurations.
AVENTICS Pressure sensor, Series PE6 R412007887
