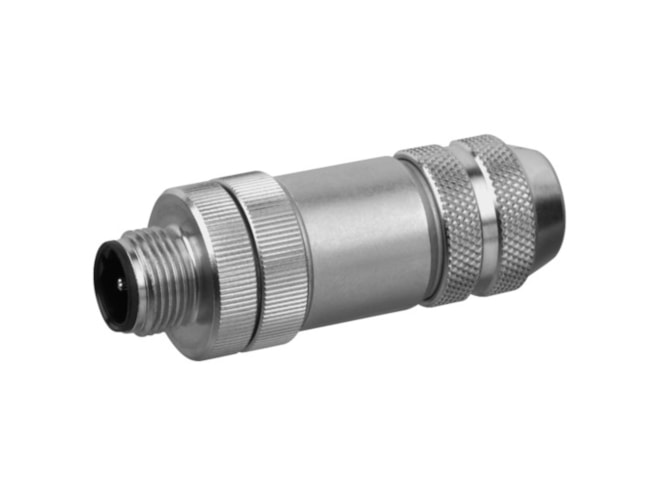

Aventics CON-RD-MS-M12B-5-SCREW Round Plug Connector

View other configurations.

Call for pricing
Part Numbers
  • CON-RD-MS-M12B-5-SCREW
  • 8941054054
Highlights...

Features

  • Cable Exit 1: straight
  • Certifications: UL (Underwriters Laboratories)
  • Coding: B-coded
  • Connector Type: Round plug connectors
  • Electrical Connection: M12x1
  • Electrical Connection Type: Plug
  • Industry: Industrial
  • Max Ambient Temperature: 85 °C
  • Min Ambient Temperature: -25 °C
  • Number of Poles: 5-pin
  • Operating Voltage: 48 V AC/DC
  • Shielding: shielded
  • Dimension: 4.02x1.18x0.87 (inches)
View other configurations.
AVENTICS Round plug connector, Series CON-RD 8941054054
