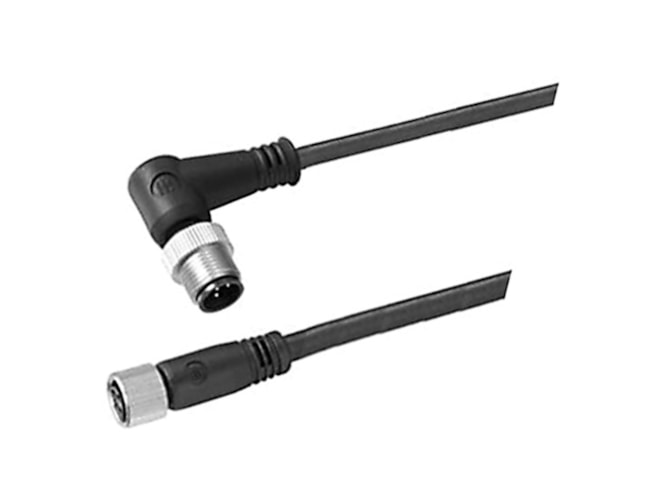

Aventics CON-RD-FS-M8-3-2000-PUR-MA-M12-3 Round Plug Connector

Features

• Bending radius: 41 mm
• Cable Exit 1: straight
• Cable Exit 2: angled
• Cable Length: 2 m
• Chain suitable: suitable for dynamic laying
• Coding: A-coded
• Coding 2: A-coded
• Electrical Connection: M8x1
• Electrical Connection 2: M12x1
• Electrical Connection Type: Socket
• Electrical Connection Type 2: Plug
• Industry: Industrial
• Max Ambient Temperature: 80 °C
• Min Ambient Temperature: -25 °C
• Number of Lines: 3
• Number of Poles: 3-pin
• Number of Poles 2: 3-pin
• Operating Voltage: 48 V AC/DC
• Protection class: IP67
• Shielding: unshielded
• Dimension: 9.45x9.45x0.79 (inches)
