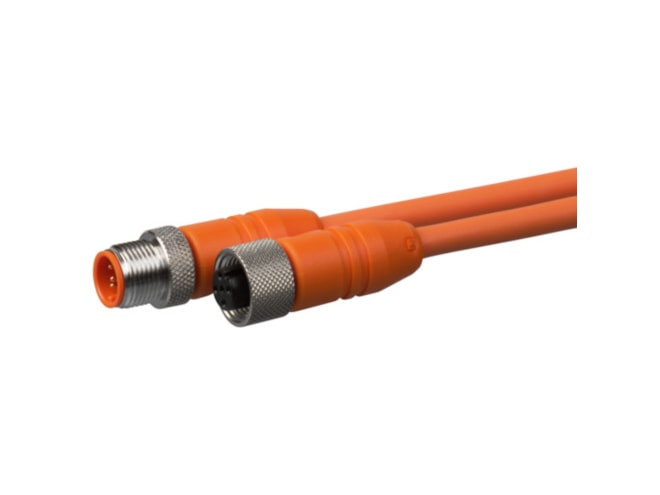

Aventics CON-RD-FS-M12-5-0500-PUR-M-5 Round Plug Connector

Features

• Bending radius: 45 mm
• Cable Exit 1: straight
• Cable Exit 2: straight
• Cable Length: 0.5 m
• Coding: A-coded
• Coding 2: A-coded
• Electrical Connection: M12x1
• Electrical Connection 2: M12x1
• Electrical Connection Type: Socket
• Electrical Connection Type 2: Plug
• Industry: Industrial
• Max Ambient Temperature: 80 °C
• Min Ambient Temperature: -25 °C
• Number of Lines: 5
• Number of Poles: 5-pin
• Number of Poles 2: 5-pin
• Operating Voltage: 36 V DC / 30 V AC
• Protection class: IP67
• Shielding: shielded
• Dimension: 5.35x5.79x1.18 (inches)
