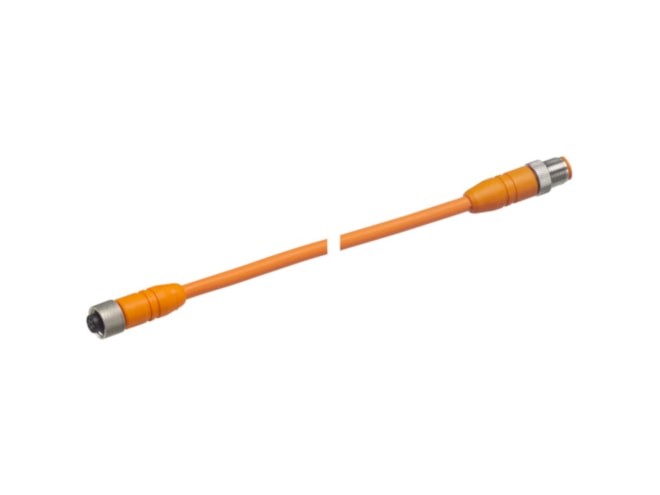

Aventics CON-RD-FS-M12-8-5000-PUR-MS-M12-8 Round Plug Connector

Features

• Cable Exit 1: straight
• Cable Exit 2: straight
• Cable Length: 5 m
• Chain suitable: suitable for dynamic laying
• Coding: A-coded
• Coding 2: A-coded
• Electrical Connection: M12x1
• Electrical Connection 2: M12x1
• Electrical Connection Type: Socket
• Electrical Connection Type 2: Plug
• Industry: Industrial
• Max Ambient Temperature: 80 °C
• Min Ambient Temperature: -25 °C
• Number of Lines: 8
• Number of Poles: 8-pin
• Number of Poles 2: 8-pin
• Operating Voltage: 36 V DC / 30 V AC
• Protection class: IP67
• Shielding: shielded
• Dimension: 7.24x7.60x2.09 (inches)
