Aventics CC02-AL-M5-DA06-2_1_SLS Flow Control Valve

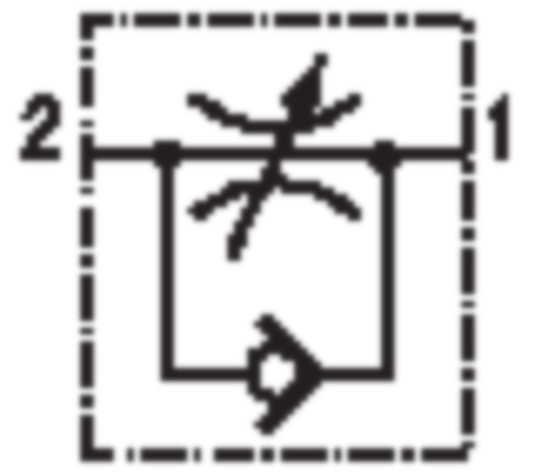

Exhaust Air Throttling, Inlet-Side Throttling, Check-choke valve. View other configurations.

$34.79
Part Numbers
  • CC02-AL-M5-DA06-2_1_SLS
  • R412004995
Highlights...

Features

  • Compressed air connection: Ø 6
  • Compressed air connection 2: M5
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 85 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 1.97x1.57x0.39 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL R412004995
