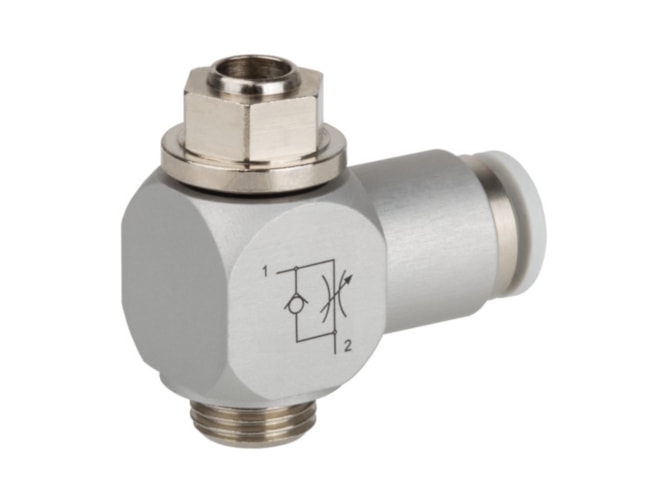

Aventics CC02-AL-G038-DA12-2_1_SLS Flow Control Valve

Check-choke valve, Inlet-Side Throttling, Exhaust Air Throttling. View other configurations.

$75.77
Part Numbers
  • CC02-AL-G038-DA12-2_1_SLS
  • R412007432
Highlights...

Features

  • Compressed air connection: Ø 12
  • Compressed air connection 2: G 3/8
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 900 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 1.97x1.77x0.98 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL R412007432
