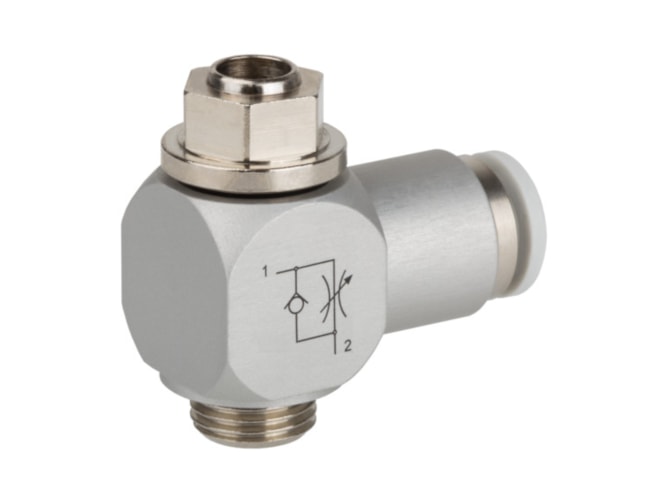

Aventics CC02-AL-M5-DA06-1_2_SLS Flow Control Valve

Inlet-Side Throttling, Check-choke valve, Exhaust Air Throttling. View other configurations.

$30.97
Part Numbers
  • CC02-AL-M5-DA06-1_2_SLS
  • R412007861
Highlights...

Features

  • Compressed air connection: Ø 6
  • Compressed air connection 2: M5
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 1 to 2: 85 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 1 to 2
  • Dimension: 1.38x0.98x0.39 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL R412007861
