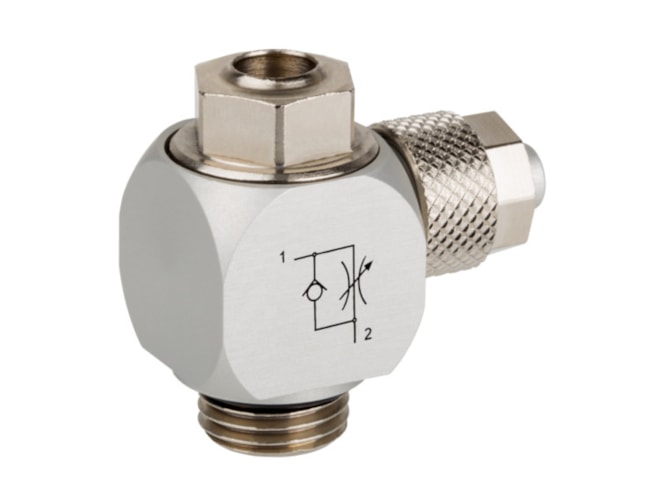

Aventics CC02-AL-M5-DA04.3-2_1_SLS Flow Control Valve

Exhaust Air Throttling, Check-choke valve, Inlet-Side Throttling. View other configurations.

$37.70
Part Numbers
  • CC02-AL-M5-DA04.3-2_1_SLS
  • 0821200117
Highlights...

Features

  • Compressed air connection: Ø 3x0,6
  • Compressed air connection 2: M5
  • Compressed air connection type: plug-in with tube nut
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 85 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 0.79x0.79x0.31 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200117
