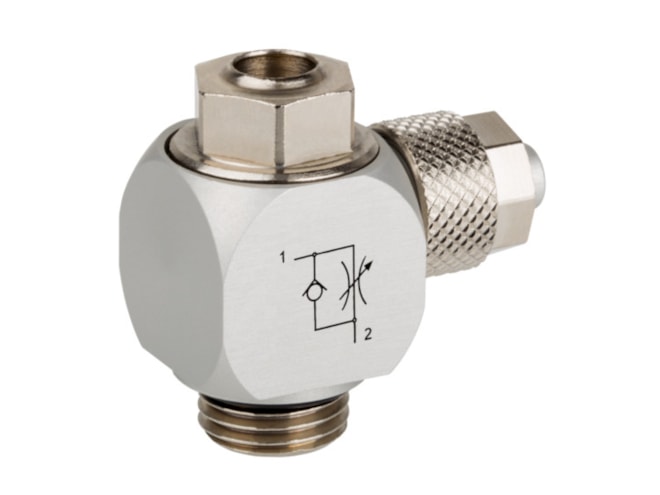

Aventics CC02-AL-M5-DA04-3-1_2_SLS Flow Control Valve

Inlet-Side Throttling, Exhaust Air Throttling, Check-choke valve. View other configurations.

Call for pricing
Part Numbers
  • CC02-AL-M5-DA04-3-1_2_SLS
  • 0821200118
Highlights...

Features

  • Compressed air connection: Ø 3x0,65
  • Compressed air connection 2: M5
  • Compressed air connection type: plug-in with tube nut
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 1 to 2: 85 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 1 to 2
  • Dimension: 2.76x1.18x0.39 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200118
