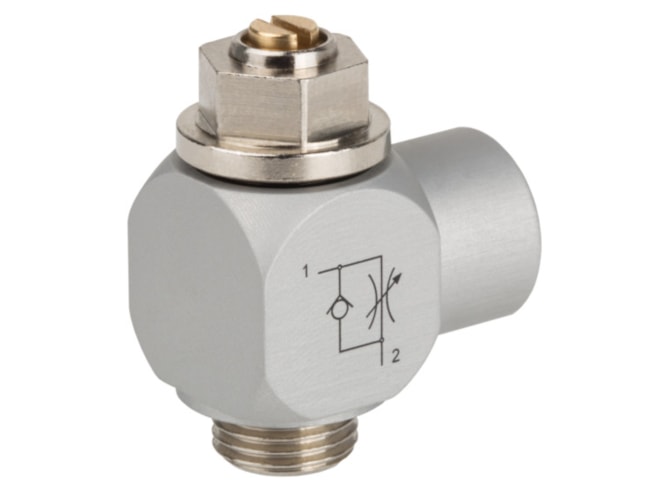

Aventics CC02-AL-G038-G038-2_1_SLS Flow Control Valve

Exhaust Air Throttling, Check-choke valve, Inlet-Side Throttling. View other configurations.

$57.75
Part Numbers
  • CC02-AL-G038-G038-2_1_SLS
  • 0821200206
Highlights...

Features

  • Compressed air connection: G 3/8
  • Compressed air connection 2: G 3/8
  • Compressed air connection type: Internal thread
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 2 to 1: 1196 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 2 to 1
  • Dimension: 2.32x1.57x0.98 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200206
