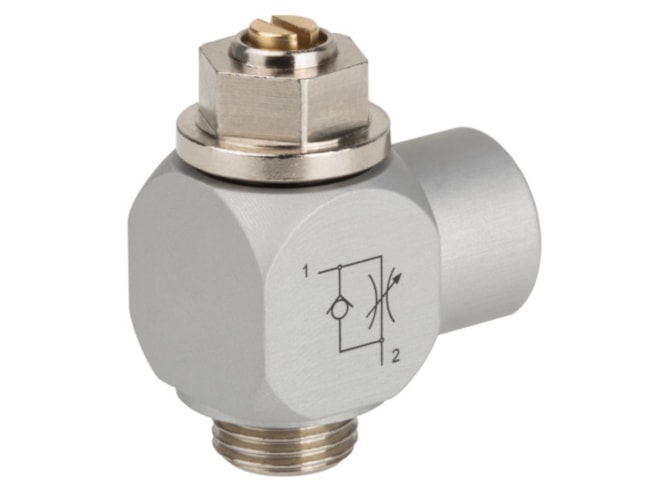

Aventics CC02-AL-G014-G014-1_2_SLS Flow Control Valve

Exhaust Air Throttling, Inlet-Side Throttling, Check-choke valve. View other configurations.

$42.46
Part Numbers
  • CC02-AL-G014-G014-1_2_SLS
  • 0821200202
Highlights...

Features

  • Compressed air connection: G 1/4
  • Compressed air connection 2: G 1/4
  • Compressed air connection type: Internal thread
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 1 to 2: 540 l/min
  • Sealing Material: Acrylonitrile butadiene rubber
  • Throttle direction: 1 to 2
  • Dimension: 1.57x1.18x0.79 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL 0821200202
