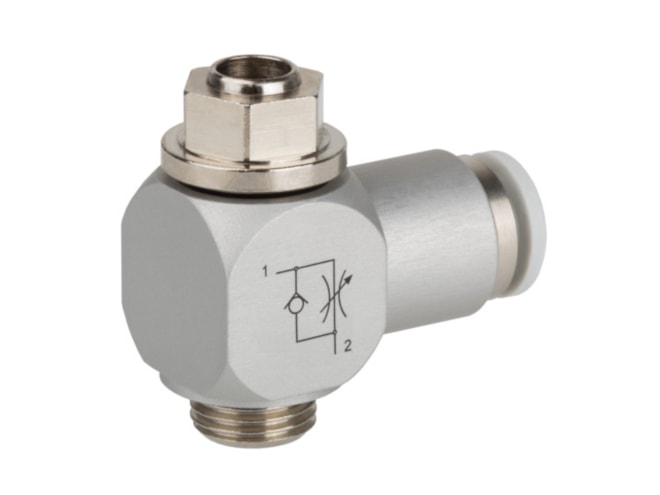

Aventics CC02-AL-M5-DA04-1_2_SLS_HNBR Flow Control Valve

Exhaust Air Throttling, Inlet-Side Throttling, Check-choke valve. View other configurations.

$41.29
Part Numbers
  • CC02-AL-M5-DA04-1_2_SLS_HNBR
  • R412026728
Highlights...

Features

  • Compressed air connection: Ø 4
  • Compressed air connection 2: M5
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 1 to 2: 70 l/min
  • Sealing Material: Hydrogenated nitrile butadiene rubber
  • Throttle direction: 1 to 2
  • Dimension: 0.98x0.79x0.39 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL-HNBR R412026728
