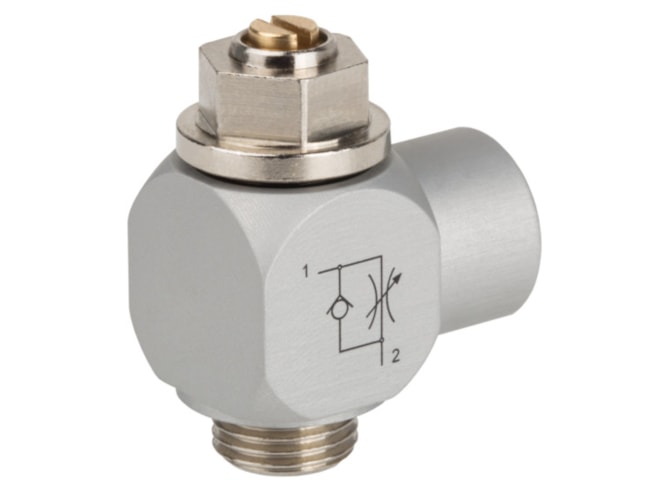

Aventics CC02-AL-G018-G018-1_2_SLS_HNBR Flow Control Valve

Exhaust Air Throttling, Inlet-Side Throttling, Check-choke valve. View other configurations.

$41.80
Part Numbers
  • CC02-AL-G018-G018-1_2_SLS_HNBR
  • R412026732
Highlights...

Features

  • Compressed air connection: G 1/8
  • Compressed air connection 2: G 1/8
  • Compressed air connection type: Internal thread
  • Compressed air connection type 2: External thread
  • Housing Material: Aluminum, anodized
  • Industry: Industrial
  • Qn 1 to 2: 314 l/min
  • Sealing Material: Hydrogenated nitrile butadiene rubber
  • Throttle direction: 1 to 2
  • Dimension: 1.18x0.98x0.59 (inches)
View other configurations.
AVENTICS Check-choke valve, Series CC02-AL-HNBR R412026732
