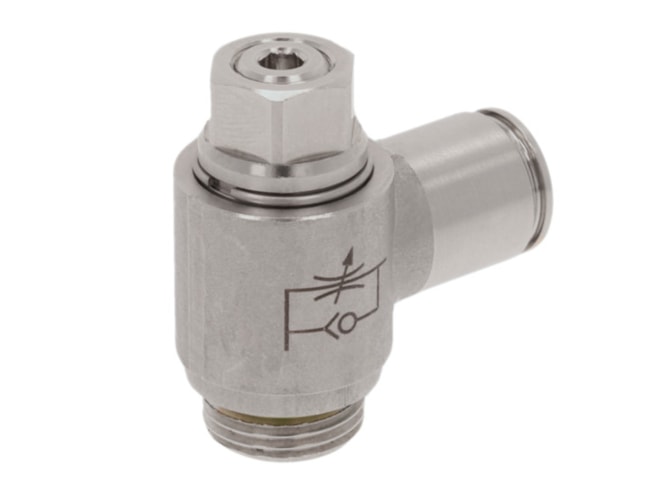

Aventics CC02-SL-G018-DA08-2_1 Flow Control Valve

Inlet-Side Throttling, Exhaust Air Throttling, Check-choke valve. View other configurations.

$198.67
Part Numbers
  • CC02-SL-G018-DA08-2_1
  • R412024739
Highlights...

Features

  • Compressed air connection: Ø 8
  • Compressed air connection 2: G 1/8
  • Compressed air connection type: push-in fitting
  • Compressed air connection type 2: External thread
  • Housing Material: Stainless Steel
  • Industry: Industrial
  • Qn 2 to 1: 200 l/min
  • Sealing Material: Fluorocaoutchouc
  • Throttle direction: 2 to 1
  • Dimension: 1.18x1.38x0.79 (inches)
View other configurations.
AVENTICS Check-choke valve, stainless steel, Series CC02-SL R412024739
