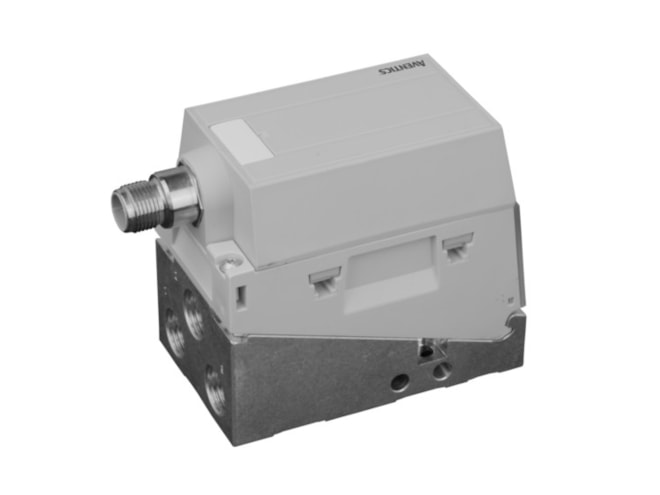

Aventics EV03-005-060-020-SL1P Proportional Pneumatic Valve

E/P pressure control valve, Proportional pressure regulator, Proportional valve, E/P valve, Pressure regulator. View other configurations.

Call for pricing
Part Numbers
  • EV03-005-060-020-SL1P
  • R414008449
Highlights...

Features

  • Actuating control: Analog
  • Compressed air connection input: G 1/4
  • Compressed air connection output: G 1/4
  • Compressed air exhaust: G 1/4
  • Current consumption max.: 120 mA
  • DC operating voltage: 24 V
  • Display Type: LED
  • EP Function: Pressure-holding
  • Flow L M: 550 l/min
  • Hysteresis: < 0,05 bar
  • Industry: Industrial
  • Input Signal: 0 ... 20 mA
  • Max Working Pressure: 11 bar
  • Output Signal: 0 ... 20 mA
  • Protection class: IP65
  • Regulation Range: 6 bar
  • Regulation Range min.: 0.5 bar
  • Repeat accuracy sensor: < 0,04 bar
  • Valve Configuration: Basic valve with base plate
  • Version Regulator: Poppet valve
  • Dimension: 7.09x5.51x5.31 (inches)
View other configurations.
AVENTICS EV03 series proportional pressure regulator R414008449
