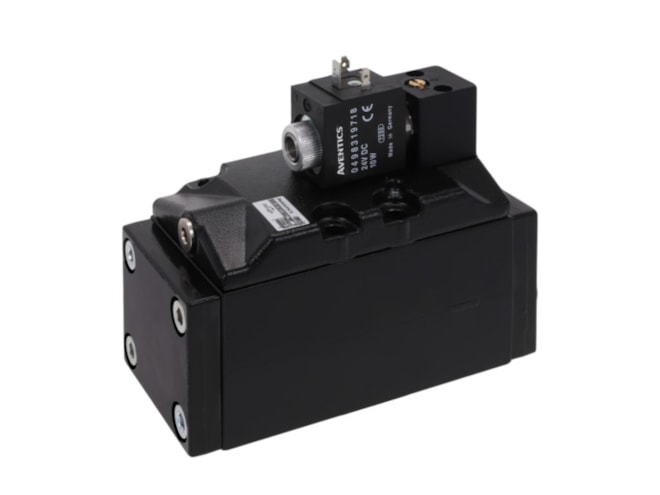

Aventics V567-3/2NC-SR-024AC Electric and Pneumatic Actuated Directional Valve

Plate connection, Single valve, Poppet valve. View other configurations.

Call for pricing
Part Numbers
  • V567-3/2NC-SR-024AC
  • 5673011330
Highlights...

Features

  • Activation: Electrically
  • Electrical Connection 2: EN 175301-803, form A
  • Flow L M: 13620 l/min
  • Housing Material: Aluminum
  • Industry: Industrial
  • Manual Override: with detent
  • Max Working Pressure: 10 bar
  • Min Working Pressure: 3.5 bar
  • Operating Voltage: 24 V AC
  • Switching principle: 3/2, with spring return
  • Valve Function: NO/NC
  • Valve Pilot: External, Internal
  • Dimension: 7.87x5.12x3.35 (inches)
View other configurations.
AVENTICS 3/2-directional valve, Series 567 5673011330
